MBBR Bio Media

Revolutionizing Industrial Wastewater Treatment with MBBR Technology

The Moving Bed Biofilm Reactor (MBBR) system has become a cornerstone in modern wastewater management, particularly for industries grappling with high-strength effluents. By combining the resilience of biofilm reactors with the adaptability of suspended growth systems, MBBR technology delivers unmatched efficiency in treating complex industrial wastewater from sectors like pharmaceuticals, food processing, and chemical manufacturing.

How MBBR Outperforms Conventional Systems:

1. Space-Efficient Design

• Achieves 85% COD removal in 6-8 hours HRT (vs. 12+ hours for activated sludge)
• 60% smaller footprint than fixed-bed biofilm reactors – ideal for retrofitting aging WWTP MBBR infrastructure

2. Adaptive Biofilm Management

• MBBR carrier media (HDPE/PP) self-regulate biofilm thickness (0.1-0.5mm)
• Automatic sloughing prevents clogging – a critical advantage in anaerobic MBBR applications treating high-TSS wastewater

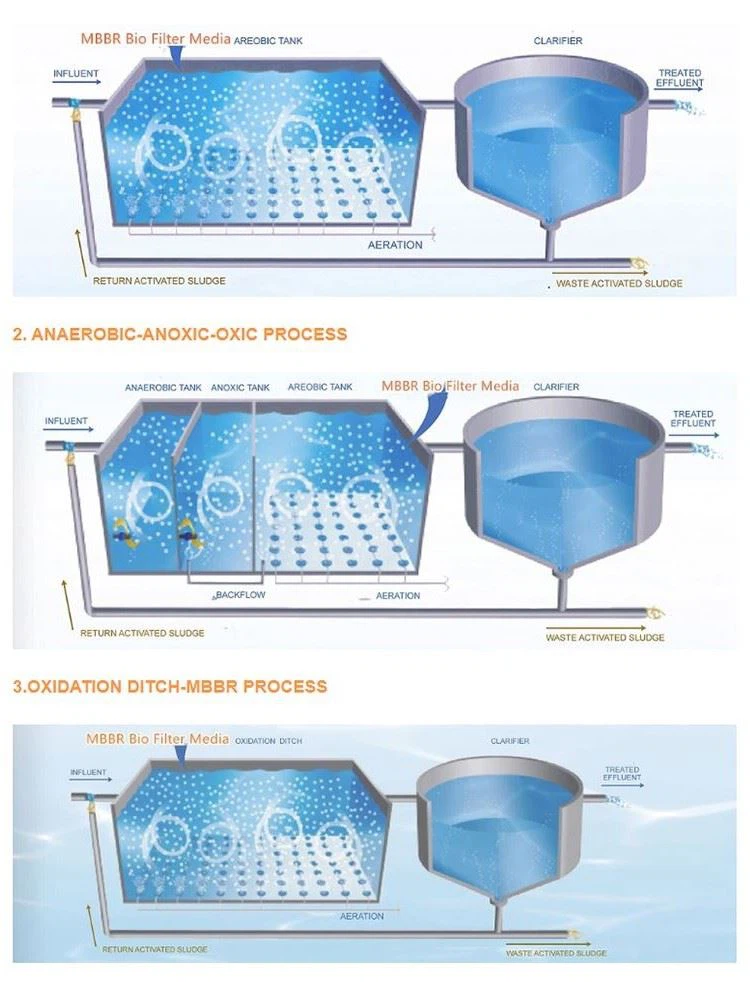

3. Hybrid Process Synergy

• Integrates seamlessly with IFAS systems for enhanced nitrogen removal
• Compatible with MABR (Membrane Aerated Biofilm Reactor) for energy-efficient aeration

Industrial Application Spotlight: Food Processing Wastewater

Challenge: 8,000 mg/L COD, seasonal load fluctuations

MBBR Solution:

Two-stage MBBR system for wastewater treatment with 70% carrier fill

Results:
✓ 92% COD reduction (effluent <250 mg/L)
✓ 35% lower energy costs vs. SBR technology
✓ Zero media replacement over 8-year operation
